NETA - An ISO 9002 Certified Company
CERTIFICATION : IBR Test Certificate in form III-C duly signed by the Director of Boilers Punjab is provided for valves to be used on steam service. For services other than steam our own Works Test Certificate shall be provided.
Cast Steel Global Valve
Cast Steel Lift Check Valve

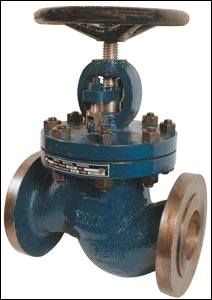

Cast Steel Globe Valve
Description
: Cast Steel Globe Valve Straight Pattern to BS:5160 PN-40/DIN 2401, PN-40, Bolted Bonnet, Outside Screw and Yoke Type, 13% Cr (AISI-410) Trim, Flanged Ends to BS:4504 Part 1 Table 40/1/DIN 2545 PN-40, Raised Face.
Test Pressure
Body - 60 Bar Gauge Hyd.
Seat - 40 Bar Gauge Hyd.
Size Range
15mm to 200mm

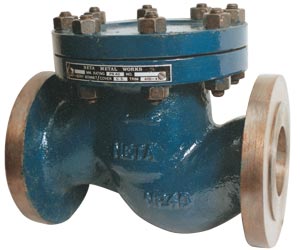

Cast Steel Lift Check Valve
Description
: NETA Cast Steel Horizontal Lift Check Valve Straight Pattern to BS:5160 PN-40/DIN 2401, PN-40, Bolted Cover, 13% Cr S.S. (AISI-410) Trim, Flanged Ends to BS:4504 Part 1 Table 40/1/DIN 2545 PN-40, Raised Face.
Test Pressure
Body - 60 Bar Gauge Hyd.
Seat - 40 Bar Gauge Hyd.
Size Range
15mm to 200mm
