CERTIFICATION
: IBR Test Certificate in form III-C duly signed by the Director of
Boilers Punjab is provided for valves to be used on steam service.
For services other than steam our own Works Test Certificate shall
be provided.

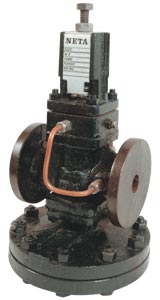

Description: NETA Cast
Iron Pilot Operated Pressure Reducing
Valve with Phos Bronze / Stainless Steel
(AISI-304) Diaphragms, Lumina Body Seat
Ring and Stainless Steel (AISI-410) Working
Parts, Flanged Ends to BS-10 Table 'F',
Outlet Pressure Ranges:5 to 45 PSIG, 40
to 100 PSIG and 90 to 150 PSIG.
Test Pressure
377 PSIG Hyd.
Max. Upstream Pressure
188. 5 PSIG
Max. Working Temp.
220°C
Size Range
25mm, 40mm & 50mm
Cast
Iron Strainer Valve
Description: NETA Cast
Iron 'Y' Type Strainer with 18/8% Cr /
Ni Stainless Steel Screen, Screwed Female
BSP Parallel / Flanged to BS-10 Table
'F' Ends. Available with Screwed Female
Ends and Flanged Ends
NETA
