Forged Steel Globe Valve    Class  800 / 150 / 300


FLOVELL Forged Steel Globe Valves
These valves are made as per BS/DIN standards. Thorough testing of each and every part at every manufacturing stage is carried out in all FLOVELL Forged Steel Valves. Various parts such as forgings, bar stocks, bolting materials, and gaskets are all subjected to strict quality control. The result of these valves is that you can depend on for high performance in all the critical applications. The design is acknowledged for its reliability, safety, technical and construction features. The machining of the components is made with high precision machine tools operated by experienced engineers with a commitment to total quality. FLOVELL offers a broad range of standard forged steel gate, globe and check valves, reduced and full bore, in threaded, socket weld and butt-weld end connections.


Technical Data
Manufacturing Standard : BS 5352
Testing Standard : API 598 / BS 5146
Socket Weld & Threaded to : ANSI B16.11 /
ANSI B2.1
Flanges to : ANSI B 16.5
Face to face to : ANSI B 16.10
Engineering Options :

1)  Stelliting is done on Seat ring & Plug if required

List Of Materials
Sr. Item Qty. Material
1 Body 1 A - 105
A - 182 F / 304
A - 182 F / 316
2 Seat Ring 2 AISI - 410
AISI - 304 (Integral)
AISI - 316 (Integral)
3 Plug 1 AISI - 410 / CA - 15
AISI - 304 / CF8
AISI - 316 / CF8M
4 Spindle 1 AISI - 410
AISI - 304
AISI - 316
5 Gasket 1 Spiral Wound SS 304 with CAF Filler
6 Bonnet 1 A - 105
A - 182 F/ 304
A - 182 F/ 316
7 Bonnet Bolt 4 A 193 Gr. B7
8 Screw 2 Carbon Steel
9 Washer 2 Carbon Steel
10 Gland Packing MIN 6 Metallic Wire Reinforced asbestos
11 Gland Bush 1 AISI - 410
AISI - 304
AISI - 316
12 Gland Flange 1 AISI - 105
AISI - 304
13 Eye Bolt & Nut 2 Carbon Steel
AISI - 304
14 Yoke Nut 1 Ni-Resist
15 Hand Wheel 1 M.I./ C.I.
16 Hand Wheel Washer 1 Carbon Steel
17 Hand Wheel Nut 1 Carbon Steel

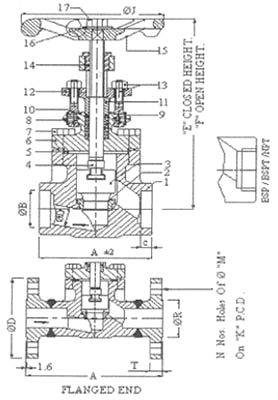

Socket Weld End
SIZE A B C D E F J
15 87 21.7 9.5 9.5 161 170 85
20 90 27.1 12.7 12.7 167 177 85
25 105 33.78 12.7 17.5 172 186 90
32 128 42.57 12.7 23.8 250 268 145
40 128 48.64 12.7 28.6 250 268 145
50 142 61.11 16 30 262 284 145

ASA - 300
SIZE A D R T K N M
15 152 95 35 14 67 4 16
20 178 118 43 16 83 4 19
25 203 124 51 17.5 89 4 19
32 216 133 63 19 98 4 19
40 229 155 73 21 114 4 22
50 267 165 92 22 127 8 19


ASA - 150
SIZE A B C D E F J
15 108 89 35 11 60 4 16
20 118 98 43 11 70 4 16
25 127 108 51 11 79 4 16
32 140 118 63 13 89 4 16
40 165 127 73 14 98 4 16
50 203 152 92 16 121 4 19

TEST  PRESSURE ( P S I G )
CLASS BODY SEAT SEAT AIR
800 3000 2000 100
150 443 314 100
300 1114 814 100


All Dimensions are in M.M
