Flowell Page Cast Steel Gate Valve Class 150




FLOVELL Make Cast Steel Gate Valves
Cast Steel Gate valves provide optimum performance in conditions where high flow efficiency, tight shut off and long service is required in daily usage. Ideal for a variety of services within many industries including chemical pulp and paper power and waste water. For complete versatility the range includes fabricated, forged, and cast designs. It consists of bolted bonnet type body and pressure seal designs, it is also the most common and traditional type of valve that accommodate the yoke and stem mechanism, but fully open the full-bore design provides an uninterrupted flow path. Generally it is either used fully opened or closed, for on/off purpose. They provide unequaled performance in a variety of applications. Its variants include solid and flexible wedge gates, double disc gates, parallel slide valves and knife gate valves. These valves can be installed in vertical or horizontal position
without affecting the direction of the fluid flow in the pipeline

Technical Data
Manufacturing Standard : API 600
Testing Standard : API 598
Flanges to : ANSI B 16.5
Face to face to : ANSI B 16.10
Engineering Options :

1)  Stelliting is done on Seat ring & Wedgeif required.
2)  Remote Operation on Request

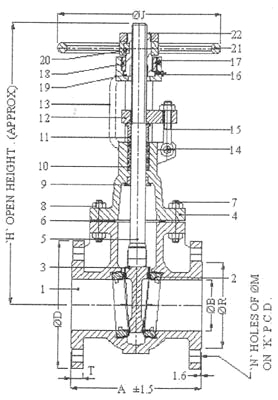

List Of Materials
Sr. Item Qty. Material
1 Body 1 ASTM- A 216 Gr. WCB
ASTM-A 351 Gr.CF8 / CF8M
2 Seat Ring 2 CS with 13% Cr. Facing
AISI 304 / 316 (Integral)
3 Wegde 1 CS with 13% Cr. Facing
AISI - 304 / 316
4 Spindle 1 AISI - 410
AISI - 304
AISI - 316
5 Gasket 1 Spiral Wound SS 304 With CAF Filler /P.O
6 Bonnet 1 ASTM A-216 Gr. WCB
ASTM A-  351 Gr. CF8/CF8M
7 Bonnet Stud As Req. ASTM A - 193 Gr. B7
8 Bonnet Stud Nut As Req. ASTM A - 194 Gr. 2 H
9 Bonnet Bush 1 AISI 410/304/316
10 Gland Packing MIN 7 Inconnel Wire Reinforced Graphited asbestos
11 Gland Bush 1 AISI - 410
AISI - 304
AISI - 316
12 Gland Flange 1 Carbon Steel
AISI - 304
13 Name Plate 1 Aluminium
14 Cross bolt & Nut 2 Carbon Steel / AISI - 304
15 Eye Bolt & Nut 2 Carbon Steel / AISI - 304
16 Grease Nipple 1 Commercial
17 Grub Screw 1 Commercial
18 Yoke Bush 1 Carbon Steel
19 Yoke Sleeve 1 Al.Bronze / Ni - resist
20 Hand Wheel Key 1 Carbon Steel
21 hand Wheel 1 Cast Iron /MI
22 Hand Wheel Nut 1 Carbon Steel








ASA - 150
SIZE B A D T R K N M H J
25 25 127 108 11 51 79 4 16 205 152
40 38 165 127 14 73 98 4 16 265 152
50 51 178 152 16 92 120 4 19 397 203
65 63 191 178 17 105 140 4 19 420 203
80 76 203 191 19 127 152 4 19 487 254
100 102 229 229 24 157 190 8 19 611 254
125 125 254 254 24 186 216 8 22 745 305
150 152 267 279 25 216 241 8 22 825 305
200 203 292 343 28 270 298 8 22 1060 356
250 254 330 406 30 324 362 12 25 1276 457
300 306 356 483 32 381 432 12 25 1484 508
350 337 381 533 35 413 476 12 28 1636 508
400 387 407 597 36 470 540 16 28 1875 600
450 438 432 635 40 533 578 16 32 2178 600
500 489 457 698 43 584 635 20 32 2380 800
600 591 508 813 48 692 749 20 35 2560 800

SERVICE RATING & TEST  PRESSURE ( P S I G )
    HYDRO.
CLASS TEMP BODY SEAT SEAT AIR
150 500 F 443 314 100







All Dimensions are in M.M
